The Gardco Form Ten LED family revitalizes a classic design with modern technology to meet the lighting needs of site and area applications. With several color combinations available, the luminaire can be designed to draw attention or gracefully fade into its surroundings, complementing a variety of building motifs. Regardless of aesthetic preference, the high-performance precision or ComfortEdge light engines offer energy-saving advantages with low-glare lighting to create a comfortable environment.
Form Ten
Styling options
- Post top or arm mount
- Cylinder or dome top
- ComfortEdge or precision optics
- Expanded color options
- Accent color optional
Control options

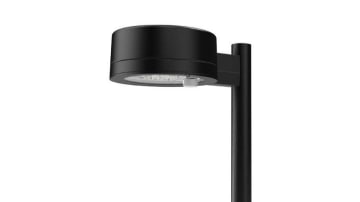

- Philips parking sensor for Interact connectivity
- Daylight sensing
- PIR or microwave motion detection
- 0-10V or DALI driver options
- 7-pin receptacle
- Zhaga socket
Luminaire specs
- 2,500-34,000 lumens
- Efficacy up to 195 LPW with precision optics and 144 LPW with ComfortEdge optics
- Wide selection of CCT/CRI combinations
- Dark Sky friendly 3000K and below
- IP66 rated luminaire
- ANSI vibration rated
- Service Tag standard
A new take on tradition
Form Ten offers multiple optical distributions in both ComfortEdge or Precision light engines to suit a variety of area lighting applications.
ComfortEdge optics
High performance comfort optics, offering the distribution of precision optics in a comfort optics solution.
Precision optics
Higher performance optics for use at higher mounting heights or with applications requiring wider luminaire spacing.
Dark Sky friendly
Zero uplight with a warmer CCT offering.
Interact for site lighting
Extend Interact to parking areas to help boost energy savings and enhance visual comfort levels. Interact is a connected system with wireless luminaire level lighting controls and integral occupancy & daylight sensing.
Product detail pages and downloads
Download brochures, bulletins, spec sheets, IES, and crossover matrix files.
