Color Kinetics ArchiPoint iColor Powercore

ArchiPoint iColor Powercore – daylight-visible LED point with intelligent color light

Product family information

Description

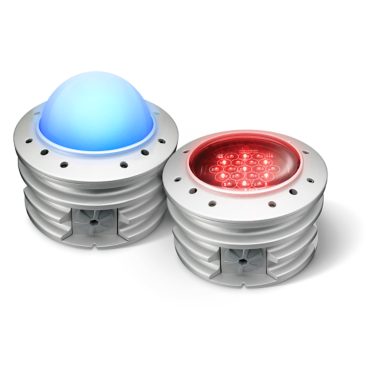

ArchiPoint iColor Powercore is a daylight-visible, exterior-rated LED point of light ideally suited for a range of direct-view and beacon applications, as well as for accent applications such as path and marker lighting. These versatile low-profile fixtures display large-scale video, graphics, and intricately designed dynamic effects in a host of settings, including architectural, retail, and entertainment installations. ArchiPoint iColor Powercore offers high-intensity output with the efficiency and cost-effectiveness of Powercore technology in a rugged aluminum housing. Powercore delivers line voltage and data to fixtures over a single cable, dramatically simplifying installation and lowering total system cost.

Benefits

  • Easily visible in brightly lit urban environments and daylight – even in direct sunlight

  • Integrated Powercore technology

Features

  • Outputs over 7,000 nits of intelligent color light, perfect for large-scale video, dynamic effects, and other direct-view applications

  • Weatherproof, low-profile housing

Applications

  • Architectural
  • Retail
  • Entertainment

Downloads

Literature

Additional literature
ArchiPoint iColor Powercore Product Overview pdf 209.2 kB
Install instructions
ArchiPoint iColor Powercore Installation Instructions pdf 9.8 MB

Visuals

Family-Photographs-ArchiPoint iColor Powercore
Multiple assets - Visuals

Photometry and Lighting design

Family-IES-ArchiPoint iColor Powercore
Multiple assets - Software Plugins

Products

Wattage (W)
25
Luminous flux (lm)
501
Efficacy (lm/W)
17.6
Wattage (W)
25
Luminous flux (lm)
774
Efficacy (lm/W)
27.4
